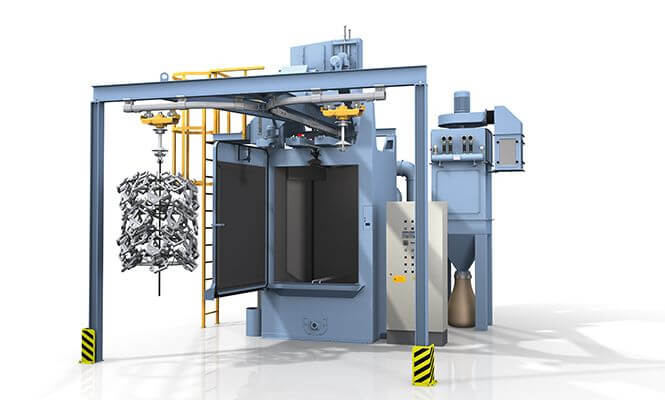

Wheelabrator HB
Wheelabrator Schlick HB är en mångsidig och robust krokbläster. Ett antal standard storlekar och många tillval att välja mellan såsom ljuddämpning, automatisk conveyorbana, avblåsning av detaljerna mm.
Kontakta oss för mer informationSpecifikationer
Machine footprint (incl. Y-overhead rail system, without filter)mm4080 x 35004680 x 42004680 x 42005380 x 56505450 x 56504650 x 5650
| Overhead rail shot blast machine | Unit | HB 10/12 | HB 12/16 | HB 12/20 | HB 16/16 | HB 16/22 | HB 16/26 |
|---|---|---|---|---|---|---|---|
| Max. diameter of workpiece cluster | mm | 1000 | 1200 | 1200 | 1600 | 1600 | 1600 |
| Max. workpiece height | mm | 1200 | 1600 | 2000 | 1600 | 2200 | 2600 |
| Max. workpiece weight | kg | 800 | 800 | 800 | 800 | 800 | 800 |
| Number of wheels x power | kW | 2 x 7.5 | 2 x 7.5 | 3 x 7.5 | 2 x 7.5 | 3 x 7.5 | 3 x 7.5 |
| Wheel variants | kW | 2 x 11 | 2 x 11 | 3 x 11 | 2 x 11 | 3 x 11 | 3 x 11 |
| Foundation pit or electric chain hoist recommended | no | yes | yes | yes | yes | yes | |
| Installation without foundation pit | |||||||
| Machine height | mm | 4140 | 4845 | 5690 | 5025 | 6100 | 6510 |
| Bottom/top workpiece edge | mm | 760/1960 | 880 x 2480 | 955 x 2955 | 1100 x 2700 | 1175 x 3375 | 1175 x 3775 |
| Installation with foundation pit | |||||||
| Depth of foundation pit | mm | 500 | 700 | 780 | 925 | 1000 | 1000 |
| Machine height | mm | 3640 | 4145 | 4910 | 4100 | 5100 | 5510 |
| Bottom/top workpiece edge | mm | 260/1460 | 180/1780 | 175/2175 | 175/1775 | 175/2375 | 175/2775 |
